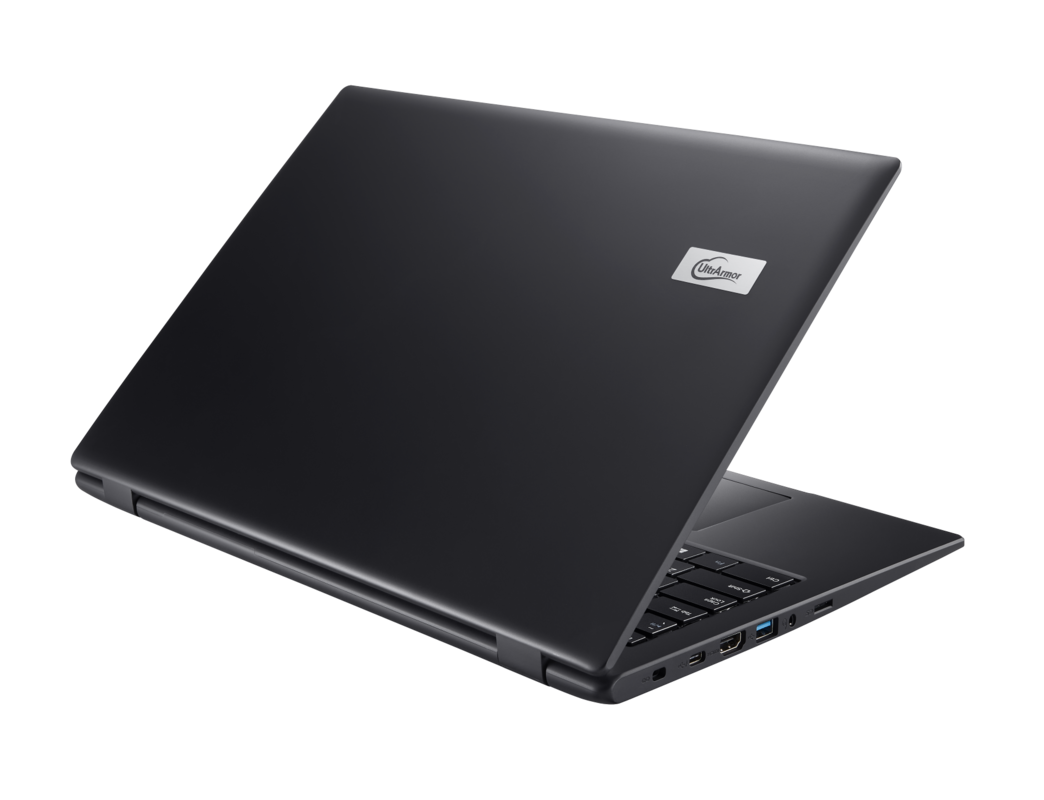

The UA9 laptop endpoint is powered by Intel® Alder Lake N quad-core processors, generating less power to extend the life of the device while delivering superior processing power. Its 15.6-inch LCD screen has a numeric keyboard, and it can be accessed from anywhere via built-in WiFi and wired connections for greater mobile productivity.
- Features
- Specification
- Downloads
Maximize durability, Minimize operating cost
Fanless UA9 eliminates the need for moving parts and extends battery life, offering superior durability and reliability
Built-in WiFi enables a mobile work environment
UA9 can access virtual desktops from anywhere with built-in WiFi and wired connection, achieving a greater mobile workforce capacity
Support 2 multiple monitors for optimal visual quality
Level up your visual experience with multiple-display functions. UA9 supports up to 2 UHD/4K displays, creating an immersive workspace with less effort
Energy efficiency and E-waste minimization
UA9 effectively reduces electricity bills with Intel® Alder Lake N100 CPU, generating less power to prolong the life of the device while providing exceptional processing

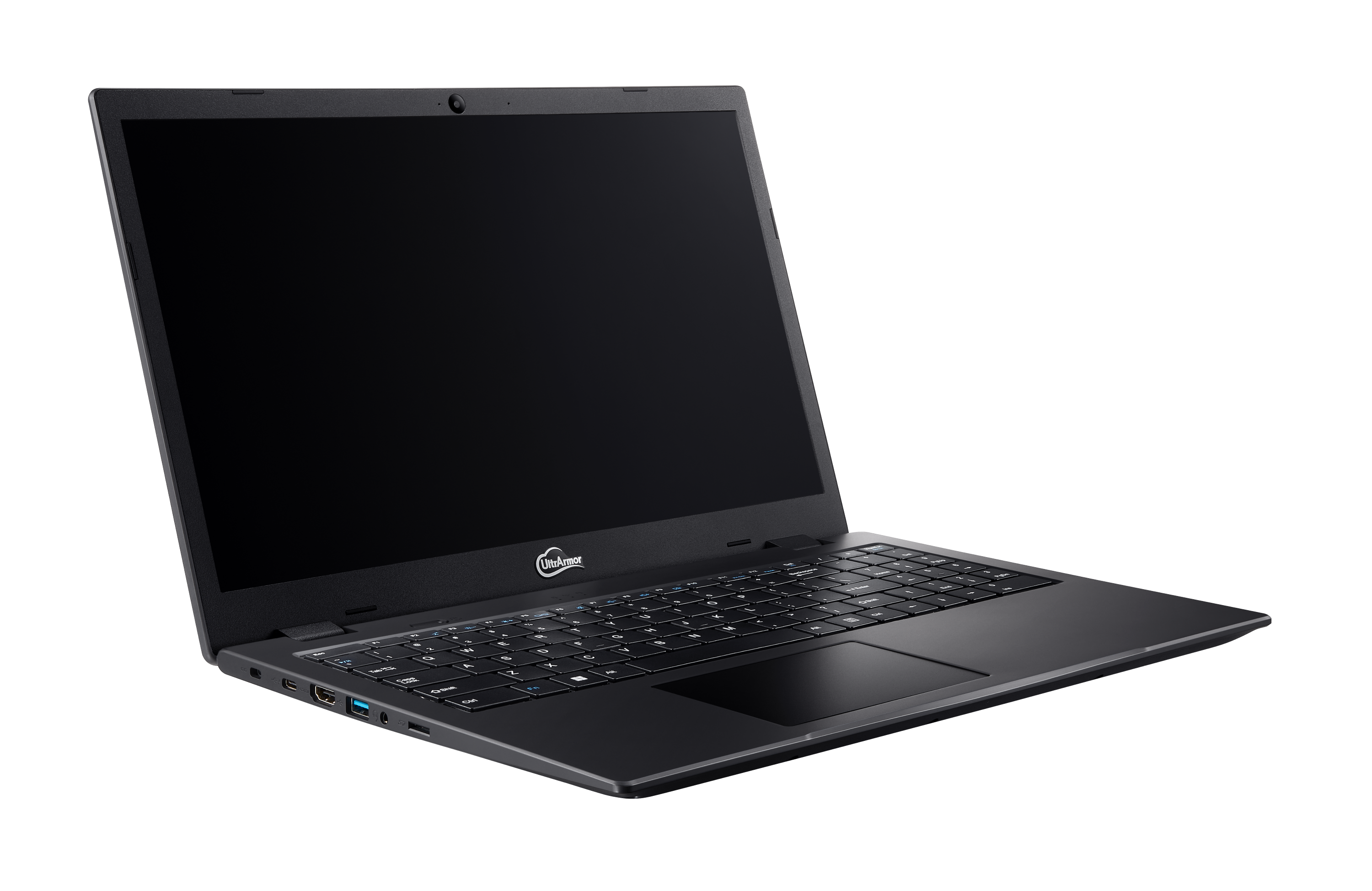

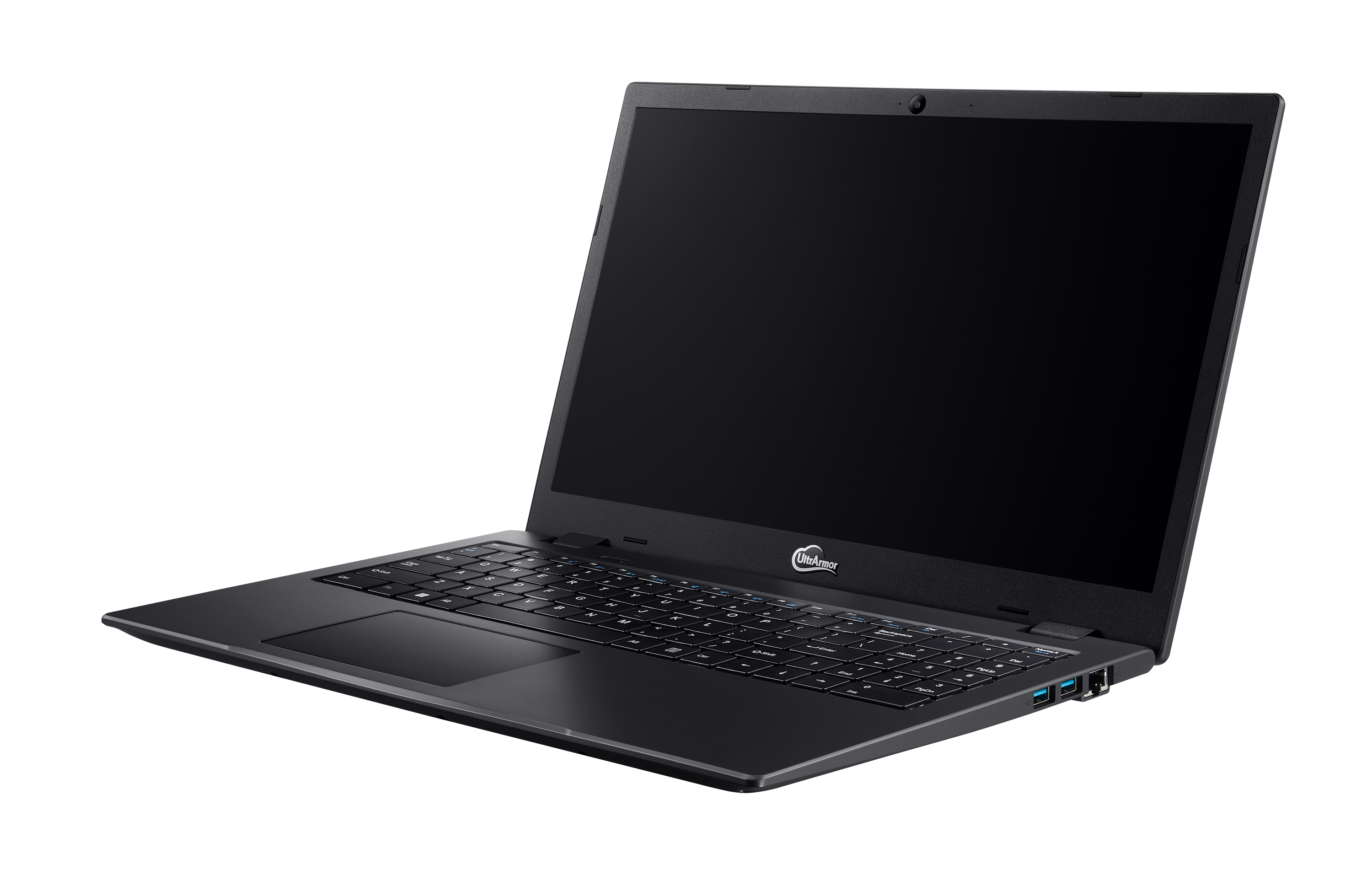

See greatness from a 15.6" LCD screen
UA9 uses a 15.6-inch LCD screen with a Numpad keyboard to increase productivity for the intensive working environment
Support IGEL OS and Win10 IoT Enterprise LTSC
Support multiple operating systems tailored to align with specific use cases and IT infrastructure requirements perfectly
|
Performance |
|
|
CPU |
Intel® Alder Lake N100 processor supports up to 3.4GHz max turbo frequency, Quad Core four threads |
|
Memory |
8GB DDR4-3200MHz single channel |
|
Multiple Display |
15.6“ full HD LCD, 1 HDMI 1.4, USB-C Alt mode |
|
Display Resolution |
Full HD on LCD, 4K 60Hz on connected displays(Max) |
|
Brightness (typical) |
250 cd/m² typ. |
|
Viewing Angle |
CR(>10):85/85 (V/H) typ. |
|
Graphic & Design |
• Intel® 12th UHD Graphics 24EUs • Full HD 2MP webcam with microphone • HEVC, VP9, and AVC decode support • Support AVX2 instruction sets |
|
Expandability |
|
|
WiFi (Optional) |
• Onboard combo WiFi6, 2 internal antenna (RTL8852BE) |
|
Bluetooth |
5.2 |
|
Storage |
• M.2 2280 M Key 128G SATA SSD • Micro SD Card Reader (Windows support only) |
|
LAN |
RJ-45 10/100/1000Mbps |
|
USB |
3 USB-A 3.2 Gen1, 1 USB-C 3.2 Gen1 with DP Alt mode, power delivery |
|
Audio |
Combo audio jack for headset and internal speakers |
|
Power |
USB Type-C 65W power adapter |
|
Battery |
Polymer 3S1P 11.4V/3950mAh/45W Li-Polymer Battery, 3 cells |
|
Keyboard Language |
German, Spanish, French, and English |
|
Manageability / Security |
|
|
Security Lock |
Security lock 3*7mm |
|
WoL |
RJ45 LAN with standby power design supports Magic Packet wake-up event |
|
TPM |
Infineon TPM 2.0 |
|
Environment |
|
|
Cooling |
Passive cooling |
|
Operating Temperature |
0 °C to 35 °C, 32 °F to 95 °F in vertical position |
|
Operating Humidity |
20% - 80% non-condensing |
-
2024 UltrArmor UA9 Datasheet
